What is a 50 ohm dummy load and How Does It Work?
A 50 ohm dummy load, the testing and calibration tool of RF systems, serves as a safe simulation of a load for transmitters, amplifiers, and antennas without transmitting accurate signals into the atmosphere. This equipment simulates an actual load and allows for the safe and precise testing and troubleshooting of RF systems. Let us have a closer look at what a 50-ohm dummy load is, how it works, and the significance of a 50-ohm dummy load for RF applications.

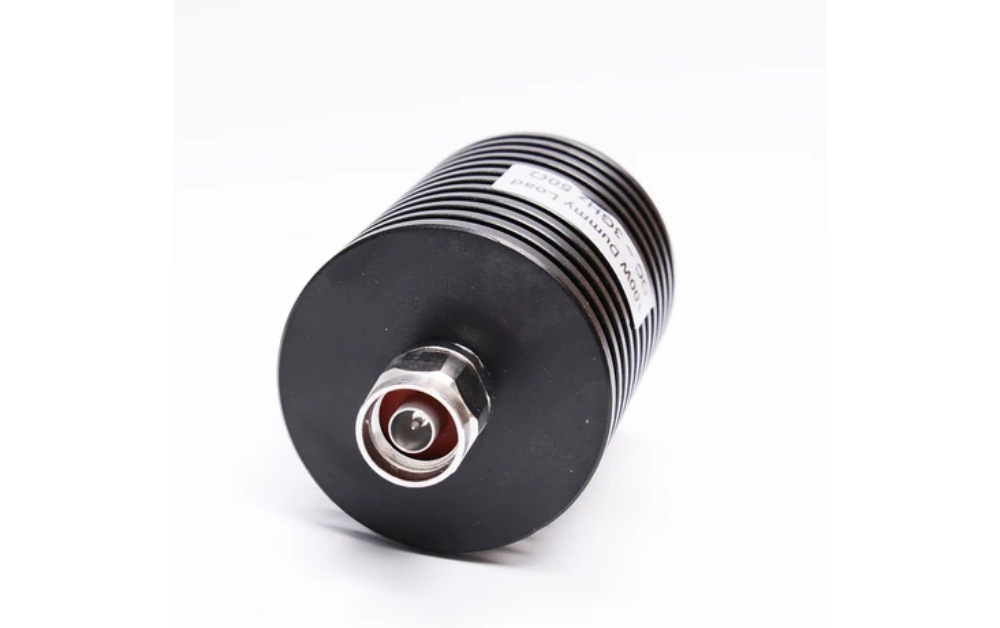

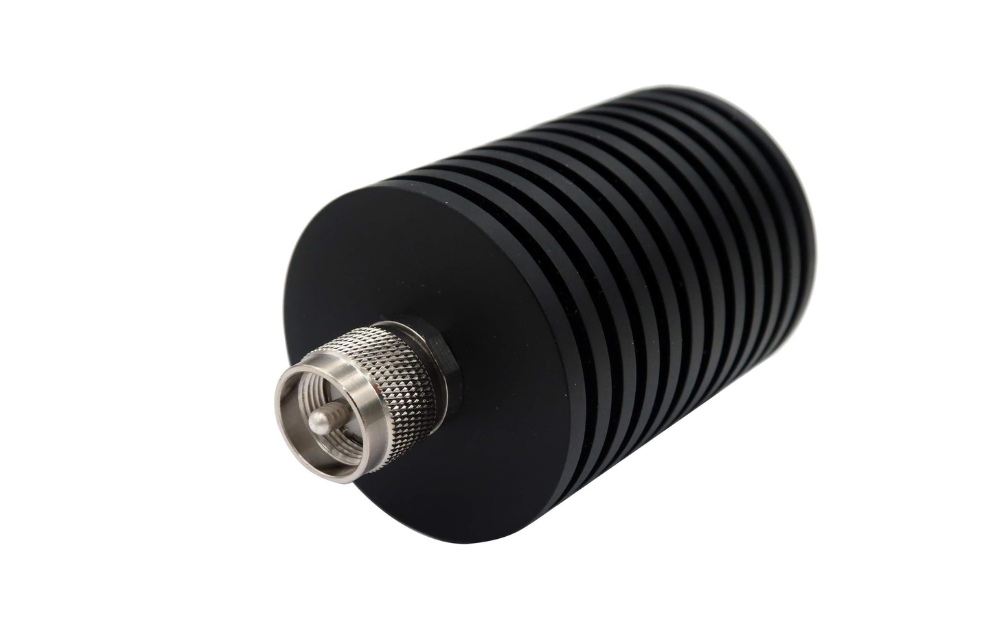

What is a 50 ohm dummy load?
Simply put, it is a resistor with a 50 ohms impedance designed to dissipate RF power without radiating it. Impedance, measured in ohms, is that opposition to AC in an electric circuit. Most radio frequency systems, such as radios, antennas, and transmission lines, are designed using a 50-ohm standard impedance to ensure maximum efficiency with minimal signal reflection. Since a dummy load copies the impedance of an antenna and absorbs power that an antenna would radiate, a dummy load is practical in test environments where signals may radiate and cause interference with other communications.
The working of a 50 ohm dummy load
A 50-ohm dummy load connects to the output of an RF transmitter or other RF equipment to bleed off energy that would otherwise be sent to an antenna. The load is generally a noninductive resistor that converts the RF energy into heat; such energy is dissipated safely and cannot be broadcast. The dummy load, therefore, is noninductive, so it acts as a pure resistance, ideal for testing purposes, free from any unwanted inductive or capacitive effects within the system.
Some dummy loads have a heat sink; others are housed in materials that enable proper heat dissipation. Building a 50-ohm dummy load is very crucial because this is what will ensure that the dummy load is stable across different power levels without overheating or impedance change.
Applications of a 50 ohm dummy load
- Transmitter Testing RF transmitters are indeed put to test and calibration without broadcasting signals that would interfere with other systems. A 50-ohm dummy load lets technicians measure performance parameters such as power output, frequency stability, and signal quality without employing an antenna.
- System Calibration-Dummy loads assist the engineer to verify if his devices are properly set up to operate outside the lab. Dummy loads are used with RF systems in calibration to verify that the equipment will not reflect the signal and that all the devices function according to their specifications within the tolerance given.
- Amplifier Testing: In the amplification testing of RF amplifiers, amplified signals are absorbed without causing interference on a dummy load, and technicians measure gain and other amplifier characteristics accurately.
- Maintenance and Troubleshooting: Dummy loads provide a controlled environment in which faults within RF systems can be diagnosed. The attaching of a 50-ohm dummy load to various parts of the system lets the technicians seal off faulty areas that would otherwise interfere with any incoming signal.
Why 50 Ohms?
The 50-ohm impedance standard balances power handling capability with minimal signal loss, and so it becomes the gold standard in most RF applications. Lower impedance, like 30 ohms, would be able to handle more power with more signal loss, while higher values, such as 75 ohms, could reduce loss but could only handle less power. Thus, the industry settled on the compromise of 50 ohms for efficient signal transmission and power handling.
Selection of Proper Dummy Load
Some things to consider while choosing a 50-ohm dummy load would be the power rating, the frequency range, and the cooling design. There are various types of power ratings, ranging from several watts for low-power systems, whereas in the case of high-power transmitters, hundreds or thousands of watts. It is thus crucial that such a chosen dummy load can support the maximum output power intended by the equipment to ensure proper testing and safety.
Conclusion
The most valuable tool for a person working with any kind of RF equipment is a 50-ohm dummy load, which gives safe and accurate testing without unwanted signal transmission. It absorbs the RF energy and prevents signal radiation to allow technicians to fine-tune and calibrate their equipment in a much more efficient way and troubleshoot problems immediately.
